Diverging barplot in python. Can flexibly include the center bar or not depending on how many categories you give it.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| import pandas as pd | |
| from matplotlib import pyplot as plt | |
| import seaborn as sns | |
| import matplotlib.patches as mpatches | |
| sns.set(style="whitegrid", font_scale=1.8) | |
| def diverging_stacked_bar(results, category_names=[], colors=[], symmetrical=False, | |
| bar_width = 0.35): | |
| if len(category_names) % 2 == 0: # even | |
| print(len(category_names)) | |
| mid = False | |
| else: # odd | |
| mid = True | |
| mid_ix = len(category_names) / 2 | |
| ind = range(len(results)) | |
| fig, ax = plt.subplots(figsize=(12, 5)) | |
| patches = [] | |
| max_width = 0 | |
| max_left_width = 0 | |
| max_right_width = 0 | |
| for i, (ix, row) in enumerate(results.iterrows()): | |
| b = i - bar_width / 2. # bottom_bar_edge | |
| if mid: | |
| mid_count = row.loc[category_names[mid_ix]] | |
| l = -1. * mid_count / 2 # left_bar_edge | |
| r = mpatches.Rectangle( | |
| xy=(l, b), width=mid_count, height=bar_width, | |
| facecolor=colors[mid_ix], | |
| edgecolor=colors[mid_ix], | |
| linewidth=1, | |
| label='_nolegend_', | |
| ) | |
| ax.add_patch(r) | |
| left_edge = l | |
| right_edge = -l | |
| else: | |
| left_edge = right_edge = 0 | |
| if mid: | |
| right_start = mid_ix + 1 | |
| left_end = mid_ix | |
| else: | |
| right_start = len(category_names) / 2 | |
| left_end = right_start | |
| # left bars | |
| for bar in range(0, left_end): | |
| bar_count = row.loc[category_names[bar]] | |
| l = left_edge - bar_count | |
| r = mpatches.Rectangle( | |
| xy=(l, b), width=bar_count, height=bar_width, | |
| facecolor=colors[bar], | |
| edgecolor=colors[bar], | |
| linewidth=1, | |
| label='_nolegend_',) | |
| ax.add_patch(r) | |
| left_edge = l | |
| # right bars | |
| for bar in range(right_start, len(category_names)): | |
| bar_count = row.loc[category_names[bar]] | |
| l = right_edge | |
| r = mpatches.Rectangle( | |
| xy=(l, b), width=bar_count, height=bar_width, | |
| facecolor=colors[bar], | |
| edgecolor=colors[bar], | |
| linewidth=1, | |
| label='_nolegend_',) | |
| ax.add_patch(r) | |
| right_edge += bar_count | |
| max_width = max([max_width, -left_edge, right_edge]) | |
| max_left_width = min([max_left_width, left_edge]) | |
| max_right_width = max([max_right_width, right_edge]) | |
| if symmetrical: | |
| ax.set_xlim([-max_width, max_width]) | |
| else: | |
| ax.set_xlim([max_left_width, max_right_width]) | |
| ax.set_ylim([-bar_width, len(results)]) | |
| ax.set_yticks([i for i in range(len(results))]) | |
| ax.set_yticklabels([plt.Text(0, i - bar_width / 2., str(x)) for i, x in enumerate(results.index)]) | |
| legend_items = [] | |
| for cat, color in zip(category_names, colors): | |
| legend_items.append(mpatches.Patch(facecolor=color, edgecolor=color, label=cat)) | |
| ax.legend(handles=legend_items) | |
| return ax | |
| # Example | |
| results = {"strongly disagree" : [3, 4, 1, 0, 5, 7], | |
| "disagree" : [10, 12, 3, 3, 3, 2], | |
| "neutral": [4, 4, 6, 8, 1, 0], | |
| "agree": [2, 1, 7, 4, 2, 5], | |
| "strongly agree": [7, 6, 5, 4, 3, 2]} | |
| results = pd.DataFrame(results, index=["q%d" % i for i in range(6)]) | |
| columns_with_neutral = [u'agree', u'disagree', u'neutral', u'strongly agree', u'strongly disagree'] | |
| colors_with_neutral = ['firebrick', 'lightcoral', 'gainsboro', 'cornflowerblue', 'darkblue'] | |
| ax = diverging_stacked_bar(results, columns_with_neutral, | |
| colors=colors_with_neutral, symmetrical=True) | |
| columns_without_neutral = [u'agree', u'disagree', u'strongly agree', u'strongly disagree'] | |
| colors_without_neutral = ['firebrick', 'lightcoral', 'cornflowerblue', 'darkblue'] | |
| ax = diverging_stacked_bar(results, columns_without_neutral, | |
| colors=colors_without_neutral, symmetrical=False) |
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment

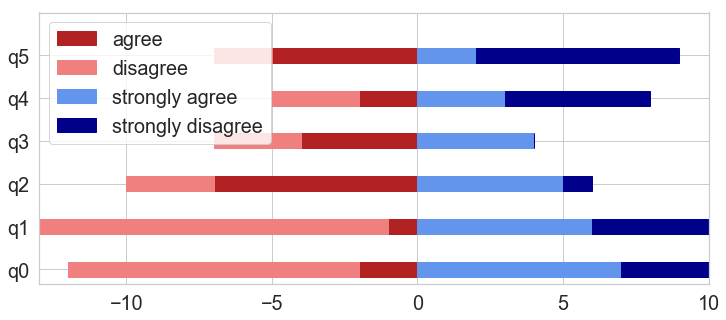

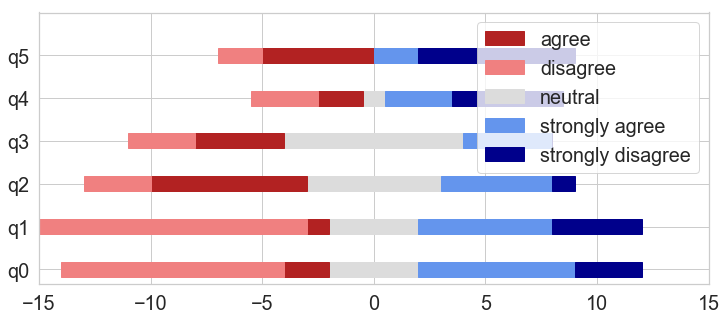

Output:
