codyborders · July 1, 2022 19:27 · Jun 28, 2022 · Jun 26, 2022 · Jun 26, 2022 · Jun 26, 2022
diff --git a/OpenTelemetry_demo_with_datadog.md b/OpenTelemetry_demo_with_datadog.md
@@ -59,10 +59,11 @@ exporters:
     endpoint: "otelcol:9464"
 + datadog:
 +   api:
-+   key: <API_KEY>
++     key: <API_KEY>
 +   env: otel
-+   tags:
-+     - otel:true
++   host_metadata:
++     tags:
++       - otel:true

 ...
 service:

diff --git a/OpenTelemetry_demo_with_datadog.md b/OpenTelemetry_demo_with_datadog.md
@@ -2,7 +2,7 @@

 I just found the following article in the OpenTelemetry blog

->Announcing a Community Demo for OpenTelemetry
+>Announcing a Community Demo for OpenTelemetry
 >https://opentelemetry.io/blog/2022/demo-announcement/

 This is a demo kit for OpenTelemetry, where an e-commerce site is built with microservices in various languages. In addition, metrics and traces are already instrumented, and if you have a Docker environment at hand, you can just `docker compose up` to get it running.
@@ -16,7 +16,7 @@ It consists of several microservices, each in a different language. (Image taken
 # How to run the demo
 Clone the Github repository and `docker compose up` to get it running. It will take a while to build the first time.

->Webstore Demo
+>Webstore Demo
 >https://github.com/open-telemetry/opentelemetry-demo-webstore

 Once up and running, access `http://localhost:8080` in your browser and you will see the following EC site.
@@ -33,10 +33,10 @@ Similarly, you can access Prometheus at `http://localhost:9090` and Jeager at `h

 Now let's send these metrics and traces to Datadog, which is a beta version of the Datadog Exporter for OpenTelemetry collectors, so this is just a trial use.

->OpenTelemetry collector Datadog exporter (Datadog document)
+>OpenTelemetry collector Datadog exporter (Datadog document)
 >https://docs.datadoghq.com/tracing/setup_overview/open_standards/otel_collector_datadog_exporter

->Datadog Exporter (Github)
+>Datadog Exporter (Github)
 >https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/exporter/datadogexporter

 The changes are as follows: Add the Datadog configuration to the Collector configuration file.

diff --git a/OpenTelemetry_demo_with_datadog.md b/OpenTelemetry_demo_with_datadog.md
@@ -58,11 +58,11 @@ exporters:
   prometheus:
     endpoint: "otelcol:9464"
 + datadog:
-+ api:
-+ key: <API_KEY>
-+ env: otel
-+ tags:
-+ - otel:true
++   api:
++   key: <API_KEY>
++   env: otel
++   tags:
++     - otel:true

 ...
 service:

diff --git a/OpenTelemetry_demo_with_datadog.md b/OpenTelemetry_demo_with_datadog.md
@@ -45,7 +45,7 @@ Add Datadog settings to `exporters`. Replace `<API_KEY>` with your API Key respe
 The following configuration will continue to be sent to Prometheus and Jeager.


-```diff_yaml:src/otelcollector/otelcol-config.yml
+```diff
 [src/otelcollector/otelcol-config.yml]

 ...
@@ -77,12 +77,12 @@ service:
       processors: [batch] + exporters: [prometheus, [batch]]
 - exporters: [prometheus, logging]
 + exporters: [prometheus, logging, datadog]
-````
+```

 Also, the Datadog Exporter is not included in the container image in the original `docker-compose.yaml`, so change the image to include the contrib.


-```diff_yaml:. /docker-compose.yaml
+```diff
 [./docker-compose.yaml]

   # Collector

diff --git a/OpenTelemetry_demo_with_datadog.md b/OpenTelemetry_demo_with_datadog.md
@@ -3,7 +3,7 @@
 I just found the following article in the OpenTelemetry blog

 >Announcing a Community Demo for OpenTelemetry
-https://opentelemetry.io/blog/2022/demo-announcement/
+>https://opentelemetry.io/blog/2022/demo-announcement/

 This is a demo kit for OpenTelemetry, where an e-commerce site is built with microservices in various languages. In addition, metrics and traces are already instrumented, and if you have a Docker environment at hand, you can just `docker compose up` to get it running.
 As a demonstration of OpenTelemetry, you can see traces and metrics in Jeager and Prometheus. In this article, I would like to send them to Datadog so that I can see them in Datadog.
@@ -17,7 +17,7 @@ It consists of several microservices, each in a different language. (Image taken
 Clone the Github repository and `docker compose up` to get it running. It will take a while to build the first time.

 >Webstore Demo
-https://github.com/open-telemetry/opentelemetry-demo-webstore
+>https://github.com/open-telemetry/opentelemetry-demo-webstore

 Once up and running, access `http://localhost:8080` in your browser and you will see the following EC site.

@@ -34,18 +34,20 @@ Similarly, you can access Prometheus at `http://localhost:9090` and Jeager at `h
 Now let's send these metrics and traces to Datadog, which is a beta version of the Datadog Exporter for OpenTelemetry collectors, so this is just a trial use.

 >OpenTelemetry collector Datadog exporter (Datadog document)
-https://docs.datadoghq.com/tracing/setup_overview/open_standards/otel_collector_datadog_exporter
+>https://docs.datadoghq.com/tracing/setup_overview/open_standards/otel_collector_datadog_exporter

 >Datadog Exporter (Github)
-https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/exporter/datadogexporter
+>https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/exporter/datadogexporter

 The changes are as follows: Add the Datadog configuration to the Collector configuration file.

 Add Datadog settings to `exporters`. Replace `<API_KEY>` with your API Key respectively. You can also set the `env` tag and other tags here. Now it is time to add `datadog` to `trace` and `metrics` in `pipelines` to be sent.
 The following configuration will continue to be sent to Prometheus and Jeager.

-`[src/otelcollector/otelcol-config.yml]`
+
 ```diff_yaml:src/otelcollector/otelcol-config.yml
+[src/otelcollector/otelcol-config.yml]
+
 ...
 exporters:
   jaeger:
@@ -79,8 +81,10 @@ service:

 Also, the Datadog Exporter is not included in the container image in the original `docker-compose.yaml`, so change the image to include the contrib.

-`[./docker-compose.yaml]`
+
 ```diff_yaml:. /docker-compose.yaml
+[./docker-compose.yaml]
+
   # Collector
   otelcol:
 - image: otel/opentelemetry-collector:0.52.0
@@ -97,11 +101,11 @@ Service map: I can see the call relationships between microservices and the traf

 ![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/b7974ac5-3e25-16ab-ced7-e38c349d8c71.png)

-Trace: In the individual traces, you can see the backend invocation relationships, the time taken, and other detailed information !
+Trace: In the individual traces, you can see the backend invocation relationships, the time taken, and other detailed information!

 ![](https://user-images.githubusercontent.com/59518903/175795420-6aa5c033-ccb2-4d25-8fad-9e6a9352ad68.jpg)

-Metrics: Metrics are also sent and tagged !
+Metrics: Metrics are also sent and tagged!

 ![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/f2501d02-3250-1d61-dc64-cff38b9796e7.png)


diff --git a/OpenTelemetry_demo_with_datadog.md b/OpenTelemetry_demo_with_datadog.md
@@ -99,7 +99,7 @@ Service map: I can see the call relationships between microservices and the traf

 Trace: In the individual traces, you can see the backend invocation relationships, the time taken, and other detailed information !

-![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/096006ea-3997-d02f-57b5-ac1bac7ca015.png)
+![](https://user-images.githubusercontent.com/59518903/175795420-6aa5c033-ccb2-4d25-8fad-9e6a9352ad68.jpg)

 Metrics: Metrics are also sent and tagged !


diff --git a/OpenTelemetry_demo_with_datadog.md b/OpenTelemetry_demo_with_datadog.md
@@ -0,0 +1,117 @@
+# Introduction
+
+I just found the following article in the OpenTelemetry blog
+
+>Announcing a Community Demo for OpenTelemetry
+https://opentelemetry.io/blog/2022/demo-announcement/
+
+This is a demo kit for OpenTelemetry, where an e-commerce site is built with microservices in various languages. In addition, metrics and traces are already instrumented, and if you have a Docker environment at hand, you can just `docker compose up` to get it running.
+As a demonstration of OpenTelemetry, you can see traces and metrics in Jeager and Prometheus. In this article, I would like to send them to Datadog so that I can see them in Datadog.
+
+# Configuration
+It consists of several microservices, each in a different language. (Image taken from blog post.)
+
+![](https://opentelemetry.io/img/blog/current-demo-architecture.png)
+
+# How to run the demo
+Clone the Github repository and `docker compose up` to get it running. It will take a while to build the first time.
+
+>Webstore Demo
+https://github.com/open-telemetry/opentelemetry-demo-webstore
+
+Once up and running, access `http://localhost:8080` in your browser and you will see the following EC site.
+
+![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/ff645144-d098-1a46-50da-c483f488eb4d.png)
+
+Similarly, you can access Prometheus at `http://localhost:9090` and Jeager at `http://localhost:16686`.
+
+![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/56f4bf5c-0dc1-3f82-acd8-ba1b10f0a82c.png)
+
+![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/9479887e-2e53-1c37-7e0f-75c7e987b158.png)
+
+# Datadog Exporter
+
+Now let's send these metrics and traces to Datadog, which is a beta version of the Datadog Exporter for OpenTelemetry collectors, so this is just a trial use.
+
+>OpenTelemetry collector Datadog exporter (Datadog document)
+https://docs.datadoghq.com/tracing/setup_overview/open_standards/otel_collector_datadog_exporter
+
+>Datadog Exporter (Github)
+https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/exporter/datadogexporter
+
+The changes are as follows: Add the Datadog configuration to the Collector configuration file.
+
+Add Datadog settings to `exporters`. Replace `<API_KEY>` with your API Key respectively. You can also set the `env` tag and other tags here. Now it is time to add `datadog` to `trace` and `metrics` in `pipelines` to be sent.
+The following configuration will continue to be sent to Prometheus and Jeager.
+
+`[src/otelcollector/otelcol-config.yml]`
+```diff_yaml:src/otelcollector/otelcol-config.yml
+...
+exporters:
+  jaeger:
+    endpoint: "jaeger:14250"
+    tls:
+      insecure: true
+  logging:
+  prometheus:
+    endpoint: "otelcol:9464"
++ datadog:
++ api:
++ key: <API_KEY>
++ env: otel
++ tags:
++ - otel:true
+
+...
+service:
+  pipelines:
+    traces:
+      receivers: [otlp].
+      processors: [batch].
+- exporters: [logging, jaeger]
++ exporters: [logging, jaeger, datadog]
+    metrics:
+      receivers: [otlp] processors: [batch
+      processors: [batch] + exporters: [prometheus, [batch]]
+- exporters: [prometheus, logging]
++ exporters: [prometheus, logging, datadog]
+````
+
+Also, the Datadog Exporter is not included in the container image in the original `docker-compose.yaml`, so change the image to include the contrib.
+
+`[./docker-compose.yaml]`
+```diff_yaml:. /docker-compose.yaml
+  # Collector
+  otelcol:
+- image: otel/opentelemetry-collector:0.52.0
++ image: otel/opentelemetry-collector-contrib:0.52.0
+    command: [ "--config=/etc/otelcol-config.yml" ]
+```
+
+# It shows up in Datadog!
+
+I `docker compose up` again, accessed the EC site, and the traces and metrics showed up in Datadog as well!
+I was really impressed with how simple and easy it was.
+
+Service map: I can see the call relationships between microservices and the traffic flow!
+
+![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/b7974ac5-3e25-16ab-ced7-e38c349d8c71.png)
+

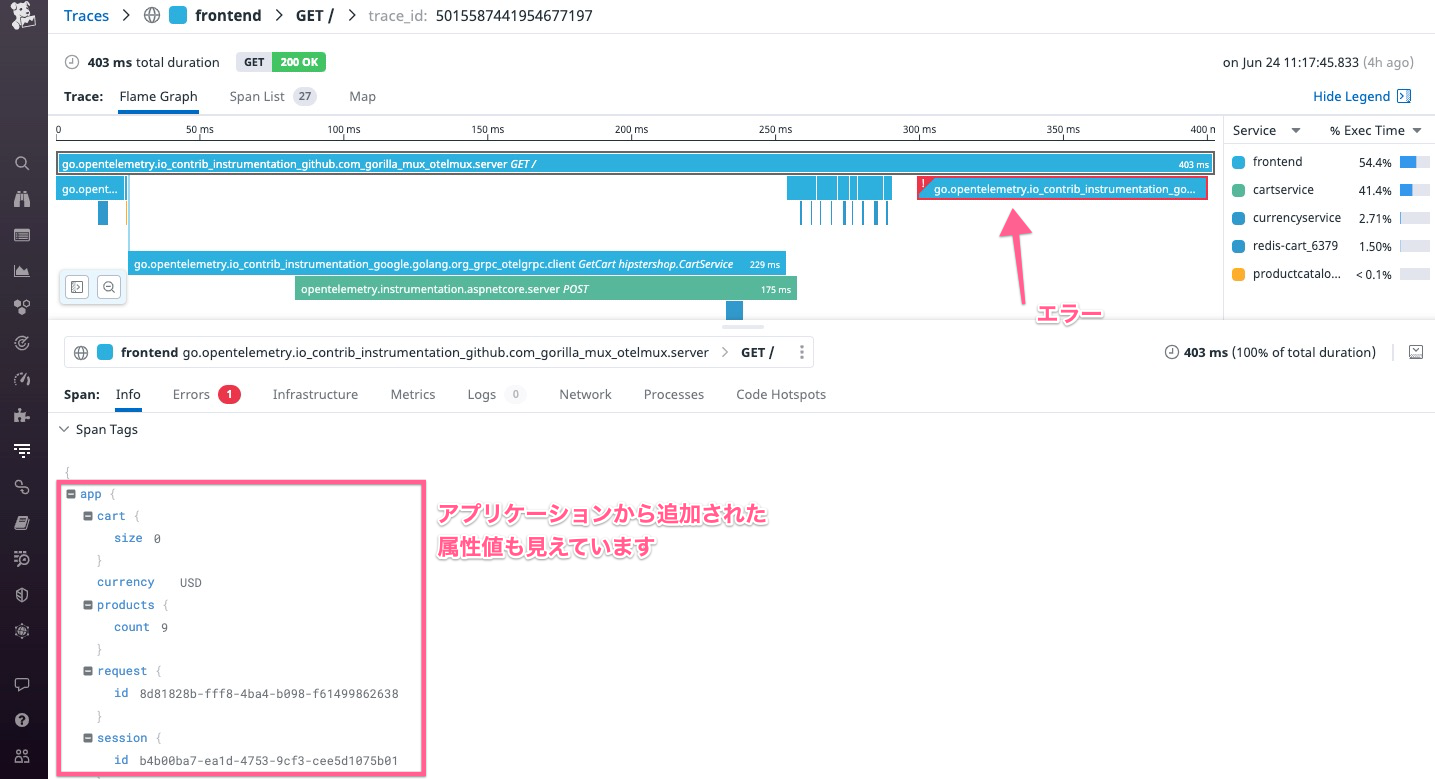

+Trace: In the individual traces, you can see the backend invocation relationships, the time taken, and other detailed information !
+
+![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/096006ea-3997-d02f-57b5-ac1bac7ca015.png)
+
+Metrics: Metrics are also sent and tagged !
+
+![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/f2501d02-3250-1d61-dc64-cff38b9796e7.png)
+
+# You can also receive them in Datadog Agent
+
+In this demonstration environment, metrics and traces are received by OpenTelemetry Collector and sent to Datadog, but Datadog Agent can be used instead.
+If you are already running Datadog Agent, you can use it as is. (However, the Agent must be the latest version.)
+As shown in the figure below, there are several ways to combine Datadog Agent with OpenTelemetry. Please refer to Datadog's blog post for details.
+
+>Ingest OpenTelemetry traces and metrics with the Datadog Agent
+https://www.datadoghq.com/blog/ingest-opentelemetry-traces-metrics-with-datadog-agent/
+
+![image.png](https://qiita-image-store.s3.ap-northeast-1.amazonaws.com/0/325973/c4a003d5-5f82-03b6-f376-e7c99926e88d.png)
