diff --git a/arrow-adornment.md b/arrow-adornment.md
@@ -7,6 +7,8 @@

 Quick and dirty. You probably want this for debugging, so just slap this function in wherever you want it.

+Minified and full versions are included below. Pick one!
+
 ## Usage

 Call the arrow function to create an arrow in workspace. If you call the function twice with the same name, the second call will replace & reuse the original. This works well when calling from within a Heartbeat event listener to update the arrow every frame.

diff --git a/roblox-arrow-adornment-minified.lua b/roblox-arrow-adornment-minified.lua
@@ -0,0 +1 @@
+local function arrow(b,c,d,e,f)e=e or BrickColor.random().Color;f=f or 1;if typeof(c)=="Instance"then if c:IsA("BasePart")then c=c.CFrame elseif c:IsA("Attachment")then c=c.WorldCFrame end;if d~=nil then c=c.p end end;if typeof(d)=="Instance"then if d:IsA("BasePart")then d=d.Position elseif d:IsA("Attachment")then d=d.WorldPosition end end;if typeof(c)=="CFrame"and d==nil then local g=c.lookVector;d=c.p;c=d+g*-10 end;if d==nil then d=c;c=d+Vector3.new(0,10,0)end;assert(typeof(c)=="Vector3"and typeof(d)=="Vector3","Passed parameters are of invalid types")local h=workspace:FindFirstChild("Arrows")or Instance.new("Folder")h.Name="Arrows"h.Parent=workspace;local i=h:FindFirstChild(b.."_shaft")or Instance.new("CylinderHandleAdornment")i.Height=(c-d).magnitude-2;i.CFrame=CFrame.lookAt((c+d)/2-(d-c).unit*1,d)if i.Parent==nil then i.Name=b.."_shaft"i.Color3=e;i.Radius=0.15;i.Adornee=workspace.Terrain;i.Transparency=0;i.Radius=0.15*f;i.Transparency=0;i.AlwaysOnTop=true;i.ZIndex=5-math.ceil(f)end;i.Parent=h;local j=h:FindFirstChild(b.."_head")or Instance.new("ConeHandleAdornment")f=f==1 and 1 or 1.4;if j.Parent==nil then j.Name=b.."_head"j.Color3=e;j.Radius=0.5*f;j.Transparency=0;j.Adornee=workspace.Terrain;j.Height=2*f;j.AlwaysOnTop=true;j.ZIndex=5-math.ceil(f)end;j.CFrame=CFrame.lookAt((CFrame.lookAt(d,c)*CFrame.new(0,0,-2-(f-1)/2)).p,d)j.Parent=h;if f==1 then arrow(b.."_backdrop",c,d,Color3.new(0,0,0),2)end end
diff --git a/arrow-adornment.md b/arrow-adornment.md
@@ -1,6 +1,7 @@
 # Roblox Arrows for 3D Visualizations

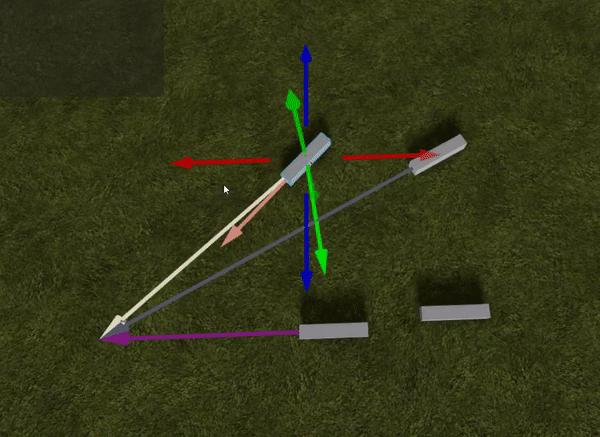

-![Demo gif](https://i.eryn.io/2043/ezgif-3-d70ddeaac0db.gif)
+![ezgif-3-d70ddeaac0db](https://user-images.githubusercontent.com/2489210/96775967-5078c600-13b6-11eb-9662-2957be0a2953.gif)
+

 ## Installation


diff --git a/arrow-adornment.md b/arrow-adornment.md
@@ -1,6 +1,6 @@
 # Roblox Arrows for 3D Visualizations

-![Demo gif](https://i.eryn.io/2043/y1xBLRlo%20%281%29.gif)
+![Demo gif](https://i.eryn.io/2043/ezgif-3-d70ddeaac0db.gif)

 ## Installation


diff --git a/arrow-adornment.md b/arrow-adornment.md
@@ -1,6 +1,6 @@
 # Roblox Arrows for 3D Visualizations

-<img src="https://i.eryn.io/2043/a097a82129d5.gif" />
+![Demo gif](https://i.eryn.io/2043/y1xBLRlo%20%281%29.gif)

 ## Installation


diff --git a/roblox-arrow-adornment.lua b/roblox-arrow-adornment.lua
@@ -1,6 +1,6 @@
 local function arrow(name, from, to, color, scale)
-  color = color or BrickColor.random().Color
-  scale = scale or 1
+	color = color or BrickColor.random().Color
+	scale = scale or 1

 	if typeof(from) == "Instance" then
 		if from:IsA("BasePart") then
@@ -36,11 +36,11 @@ local function arrow(name, from, to, color, scale)

 	assert(typeof(from) == "Vector3" and typeof(to) == "Vector3", "Passed parameters are of invalid types")

-  local container = workspace:FindFirstChild("Arrows") or Instance.new("Folder")
-  container.Name = "Arrows"
-  container.Parent = workspace
+	local container = workspace:FindFirstChild("Arrows") or Instance.new("Folder")
+	container.Name = "Arrows"
+	container.Parent = workspace

-  local shaft = container:FindFirstChild(name .. "_shaft") or Instance.new("CylinderHandleAdornment")
+	local shaft = container:FindFirstChild(name .. "_shaft") or Instance.new("CylinderHandleAdornment")

 	shaft.Height = (from - to).magnitude - 2

@@ -63,9 +63,9 @@ local function arrow(name, from, to, color, scale)

 	shaft.Parent = container

-  local pointy = container:FindFirstChild(name .. "_head") or Instance.new("ConeHandleAdornment")
+	local pointy = container:FindFirstChild(name .. "_head") or Instance.new("ConeHandleAdornment")

-  scale = scale == 1 and 1 or 1.4
+	scale = scale == 1 and 1 or 1.4

 	if pointy.Parent == nil then
 		pointy.Name = name .. "_head"
@@ -80,9 +80,9 @@ local function arrow(name, from, to, color, scale)

 	pointy.CFrame = CFrame.lookAt((CFrame.lookAt(to, from) * CFrame.new(0, 0, -2 - ((scale-1)/2))).p, to)

-  pointy.Parent = container
-
-  if scale == 1 then
-    arrow(name .. "_backdrop", from, to, Color3.new(0, 0, 0), 2)
-  end
+	pointy.Parent = container
+
+	if scale == 1 then
+		arrow(name .. "_backdrop", from, to, Color3.new(0, 0, 0), 2)
+	end
 end
diff --git a/arrow-adornment.md b/arrow-adornment.md
@@ -1,10 +1,15 @@
 # Roblox Arrows for 3D Visualizations

-<img src="https://i.eryn.io/2043/ezgif-3-a01c101b9831.gif" />
+<img src="https://i.eryn.io/2043/a097a82129d5.gif" />

+## Installation

+Quick and dirty. You probably want this for debugging, so just slap this function in wherever you want it.

 ## Usage
+
+Call the arrow function to create an arrow in workspace. If you call the function twice with the same name, the second call will replace & reuse the original. This works well when calling from within a Heartbeat event listener to update the arrow every frame.
+
 - `arrow(name: string, from: Vector3, to: Vector3)` -> Creates an arrow between `from` and `to`
 - `arrow(name: string, point: Vector3)` -> Creates an arrow pointing at `point`
 - `arrow(name: string, cframe: CFrame)` -> Creates an arrow with its point at the CFrame position facing the CFrame LookVector

diff --git a/arrow-adornment.md b/arrow-adornment.md
@@ -1,13 +1,12 @@
 # Roblox Arrows for 3D Visualizations

-<img src="https://i.eryn.io/2043/y1xBLRlo.gif" />
-<img src="https://i.eryn.io/2043/ezgif-3-d6972d3dac19.gif" />
+<img src="https://i.eryn.io/2043/ezgif-3-a01c101b9831.gif" />



 ## Usage
-`arrow(name: string, from: Vector3, to: Vector3)` -> Creates an arrow between `from` and `to`
-`arrow(name: string, point: Vector3)` -> Creates an arrow pointing at `point`
-`arrow(name: string, cframe: CFrame)` -> Creates an arrow with its point at the CFrame position facing the CFrame LookVector
-`arrow(name: string, part: BasePart)` -> Arrow represents the Part's CFrame
-`arrow(name: string, fromPart: BasePart, toPart: BasePart)` -> Arrow between the two parts
+- `arrow(name: string, from: Vector3, to: Vector3)` -> Creates an arrow between `from` and `to`
+- `arrow(name: string, point: Vector3)` -> Creates an arrow pointing at `point`
+- `arrow(name: string, cframe: CFrame)` -> Creates an arrow with its point at the CFrame position facing the CFrame LookVector
+- `arrow(name: string, part: BasePart)` -> Arrow represents the Part's CFrame
+- `arrow(name: string, fromPart: BasePart, toPart: BasePart)` -> Arrow between the two parts
diff --git a/arrow-adornment.md b/arrow-adornment.md
@@ -1,7 +1,8 @@
 # Roblox Arrows for 3D Visualizations

 <img src="https://i.eryn.io/2043/y1xBLRlo.gif" />
-<img src="https://i.eryn.io/2043/AF1OgkOX.gif" />
+<img src="https://i.eryn.io/2043/ezgif-3-d6972d3dac19.gif" />
+


 ## Usage

diff --git a/roblox-arrow-adornment.md → arrow-adornment.md b/roblox-arrow-adornment.md → arrow-adornment.md
diff --git a/roblox-arrow-adornment-function.lua → roblox-arrow-adornment.lua b/roblox-arrow-adornment-function.lua → roblox-arrow-adornment.lua
diff --git a/roblox-arrow-adornment.md b/roblox-arrow-adornment.md
@@ -1,7 +1,7 @@
 # Roblox Arrows for 3D Visualizations

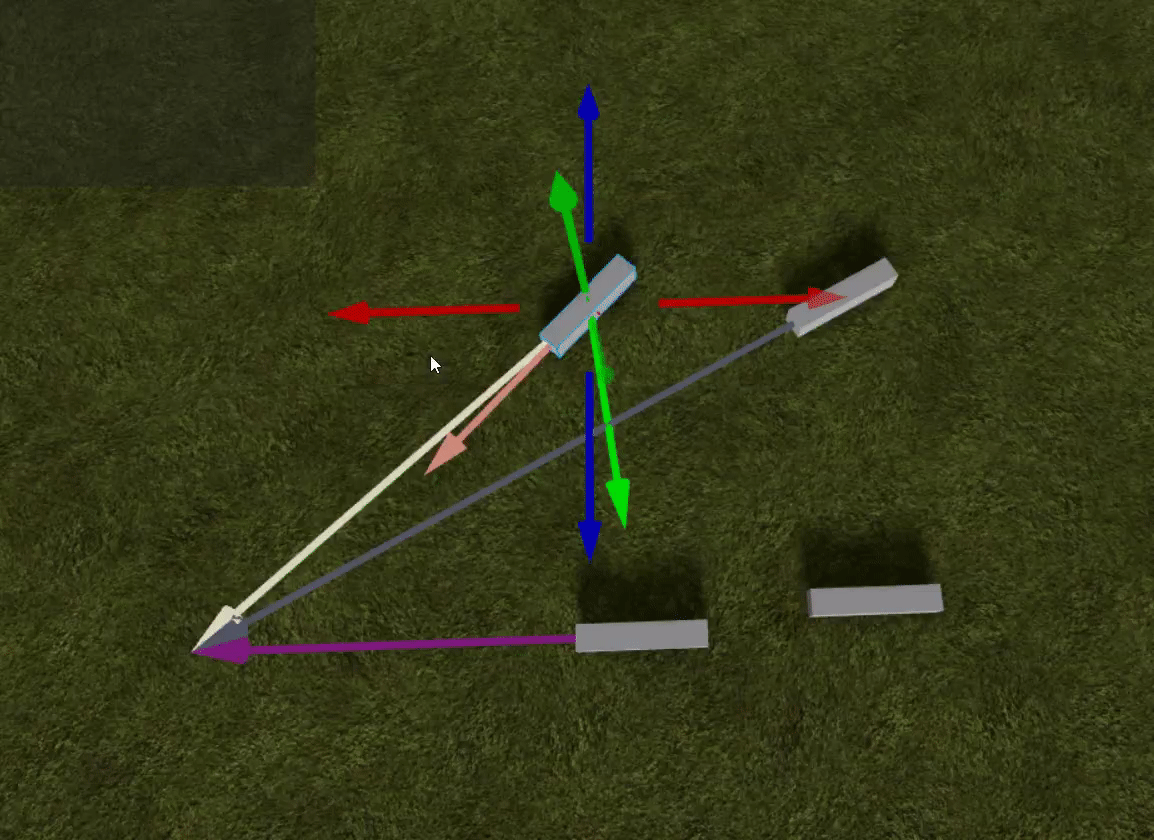

-![Gif](https://i.eryn.io/2043/y1xBLRlo.gif)

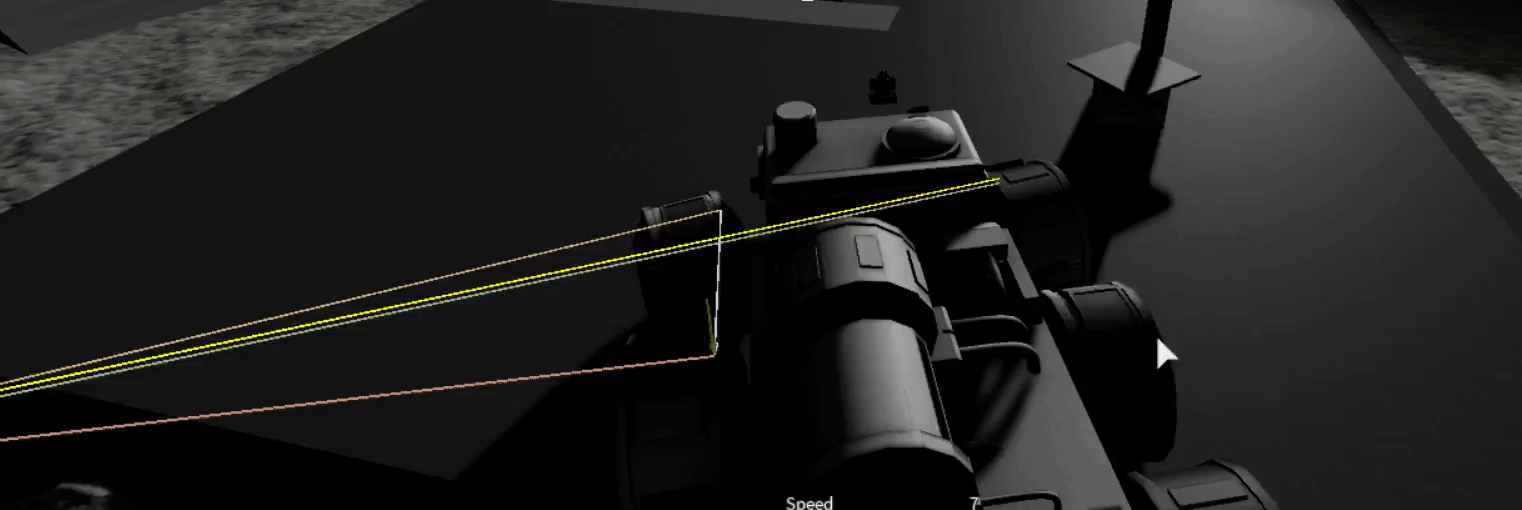

-![Gif](https://i.eryn.io/2043/AF1OgkOX.gif)
+<img src="https://i.eryn.io/2043/y1xBLRlo.gif" />
+<img src="https://i.eryn.io/2043/AF1OgkOX.gif" />


 ## Usage

diff --git a/roblox-arrow-adornment-function.lua b/roblox-arrow-adornment-function.lua
@@ -0,0 +1,88 @@
+local function arrow(name, from, to, color, scale)
+  color = color or BrickColor.random().Color
+  scale = scale or 1
+
+	if typeof(from) == "Instance" then
+		if from:IsA("BasePart") then
+
+			from = from.CFrame
+		elseif from:IsA("Attachment") then
+			from = from.WorldCFrame
+		end
+
+		if to ~= nil then
+			from = from.p
+		end
+	end
+
+	if typeof(to) == "Instance" then
+		if to:IsA("BasePart") then
+			to = to.Position
+		elseif to:IsA("Attachment") then
+			to = to.WorldPosition
+		end
+	end
+
+	if typeof(from) == "CFrame" and to == nil then
+		local look = from.lookVector
+		to = from.p
+		from = to + (look * -10)
+	end
+
+	if to == nil then
+		to = from
+		from = to + Vector3.new(0, 10, 0)
+	end
+
+	assert(typeof(from) == "Vector3" and typeof(to) == "Vector3", "Passed parameters are of invalid types")
+
+  local container = workspace:FindFirstChild("Arrows") or Instance.new("Folder")
+  container.Name = "Arrows"
+  container.Parent = workspace
+
+  local shaft = container:FindFirstChild(name .. "_shaft") or Instance.new("CylinderHandleAdornment")
+
+	shaft.Height = (from - to).magnitude - 2
+
+	shaft.CFrame = CFrame.lookAt(
+		((from + to)/2) - ((to - from).unit * 1),
+		to
+	)
+
+	if shaft.Parent == nil then
+		shaft.Name = name .. "_shaft"
+		shaft.Color3 = color
+		shaft.Radius = 0.15
+		shaft.Adornee = workspace.Terrain
+		shaft.Transparency = 0
+		shaft.Radius = 0.15 * scale
+		shaft.Transparency = 0
+		shaft.AlwaysOnTop = true
+		shaft.ZIndex = 5 - math.ceil(scale)
+	end
+
+	shaft.Parent = container
+
+  local pointy = container:FindFirstChild(name .. "_head") or Instance.new("ConeHandleAdornment")
+
+  scale = scale == 1 and 1 or 1.4
+
+	if pointy.Parent == nil then
+		pointy.Name = name .. "_head"
+		pointy.Color3 = color
+		pointy.Radius = 0.5 * scale
+		pointy.Transparency = 0
+		pointy.Adornee = workspace.Terrain
+		pointy.Height = 2 * scale
+		pointy.AlwaysOnTop = true
+		pointy.ZIndex = 5 - math.ceil(scale)
+	end
+
+	pointy.CFrame = CFrame.lookAt((CFrame.lookAt(to, from) * CFrame.new(0, 0, -2 - ((scale-1)/2))).p, to)
+
+  pointy.Parent = container
+
+  if scale == 1 then
+    arrow(name .. "_backdrop", from, to, Color3.new(0, 0, 0), 2)
+  end
+end
diff --git a/roblox-arrow-adornment.md b/roblox-arrow-adornment.md
@@ -0,0 +1,12 @@
+# Roblox Arrows for 3D Visualizations
+
+![Gif](https://i.eryn.io/2043/y1xBLRlo.gif)
+![Gif](https://i.eryn.io/2043/AF1OgkOX.gif)
+
+
+## Usage
+`arrow(name: string, from: Vector3, to: Vector3)` -> Creates an arrow between `from` and `to`
+`arrow(name: string, point: Vector3)` -> Creates an arrow pointing at `point`
+`arrow(name: string, cframe: CFrame)` -> Creates an arrow with its point at the CFrame position facing the CFrame LookVector
+`arrow(name: string, part: BasePart)` -> Arrow represents the Part's CFrame
+`arrow(name: string, fromPart: BasePart, toPart: BasePart)` -> Arrow between the two parts
Original file line number	Diff line number	Diff line change
		@@ -0,0 +1 @@
		local function arrow(b,c,d,e,f)e=e or BrickColor.random().Color;f=f or 1;if typeof(c)=="Instance"then if c:IsA("BasePart")then c=c.CFrame elseif c:IsA("Attachment")then c=c.WorldCFrame end;if d~=nil then c=c.p end end;if typeof(d)=="Instance"then if d:IsA("BasePart")then d=d.Position elseif d:IsA("Attachment")then d=d.WorldPosition end end;if typeof(c)=="CFrame"and d==nil then local g=c.lookVector;d=c.p;c=d+g-10 end;if d==nil then d=c;c=d+Vector3.new(0,10,0)end;assert(typeof(c)=="Vector3"and typeof(d)=="Vector3","Passed parameters are of invalid types")local h=workspace:FindFirstChild("Arrows")or Instance.new("Folder")h.Name="Arrows"h.Parent=workspace;local i=h:FindFirstChild(b.."_shaft")or Instance.new("CylinderHandleAdornment")i.Height=(c-d).magnitude-2;i.CFrame=CFrame.lookAt((c+d)/2-(d-c).unit1,d)if i.Parent==nil then i.Name=b.."_shaft"i.Color3=e;i.Radius=0.15;i.Adornee=workspace.Terrain;i.Transparency=0;i.Radius=0.15f;i.Transparency=0;i.AlwaysOnTop=true;i.ZIndex=5-math.ceil(f)end;i.Parent=h;local j=h:FindFirstChild(b.."_head")or Instance.new("ConeHandleAdornment")f=f==1 and 1 or 1.4;if j.Parent==nil then j.Name=b.."_head"j.Color3=e;j.Radius=0.5f;j.Transparency=0;j.Adornee=workspace.Terrain;j.Height=2f;j.AlwaysOnTop=true;j.ZIndex=5-math.ceil(f)end;j.CFrame=CFrame.lookAt((CFrame.lookAt(d,c)CFrame.new(0,0,-2-(f-1)/2)).p,d)j.Parent=h;if f==1 then arrow(b.."_backdrop",c,d,Color3.new(0,0,0),2)end end
